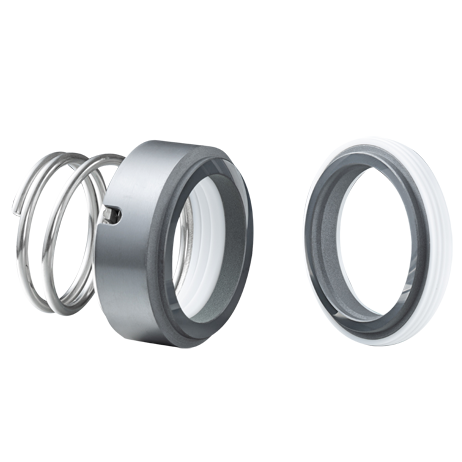

YM120B Type

Available Range
Pressure:0~1.5MPa
Temperature:-60℃~300℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium

Water、Polluted water、Oil and Minor Corrosive Liquid

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

YM120B series rely on the spring tail hook nail transmission, simple structure, easy to install, but should pay attention to the direction of rotation, it is often used in chemical pumps, sewage pumps and submersible pumps.
