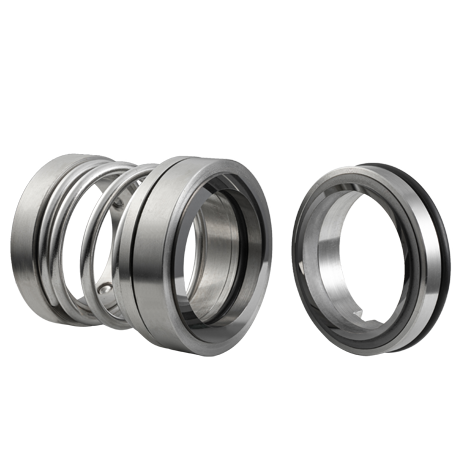

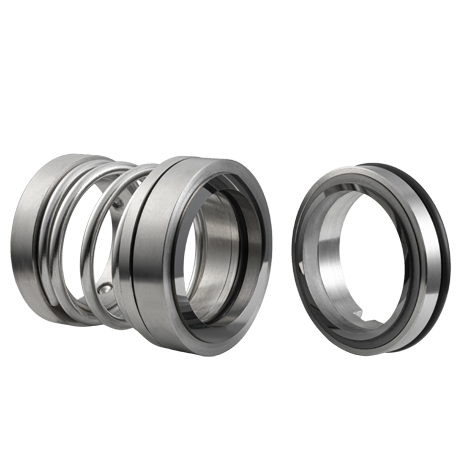

YM124 Type

Available Range
Pressure:0~1.5MPa
Temperature:-20℃~180℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium
Water、Polluted water、Oil and Minor Corrosive Liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Availability:
Quantity:

YM124 series belongs to single spring structure with internal flow, and different auxiliary sealing ring materials can be selected according to the temperature of use. It is often used for centrifugal pumps, pipeline pumps and a variety of weak corrosion resistant pumps.
