YM128 Type

Available Range
Pressure:0~1.2MPa
Temperature:-20℃~180℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium
Water、Polluted water、Oil and Minor Corrosive Liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Availability:
Quantity:

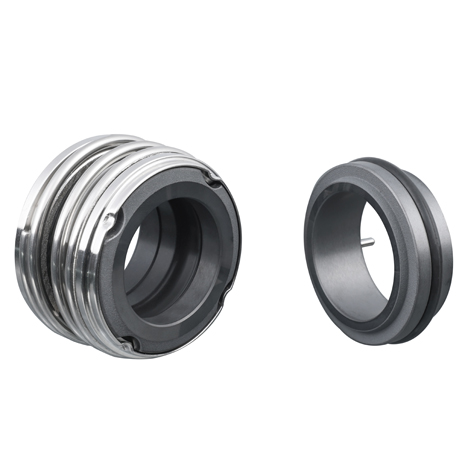

YM128 series uses bellows to combine the spring, bellows sealing ring, moving ring and driving sleeve in the moving ring seat, so that all components form a whole, easy to install and use. The problem of leakage caused by the rusting and channeling of pump shaft is solved by using the corrugated sealing ring, thus greatly increasing the service life of pump.
