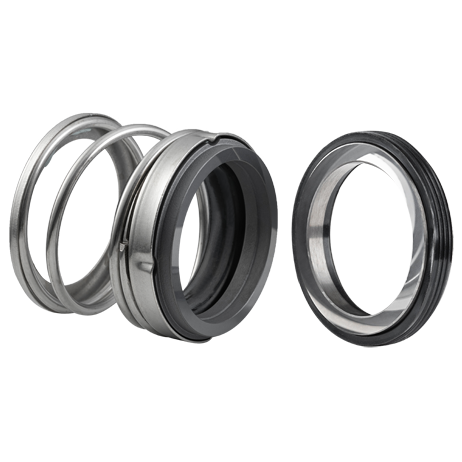

YMBIA Type

Available Range
Pressure:0~0.8MPa
Temperature:-20℃~100℃
Speed:≤12m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium

Water、Polluted water、Oil and Minor Corrosive Liquid

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

YMBIA series adopts rubber bellows as secondary seal, and also transmits torque force. It is commonly used for cooling pump, centrifugal pump, submersible pump and industrial pump, etc.
