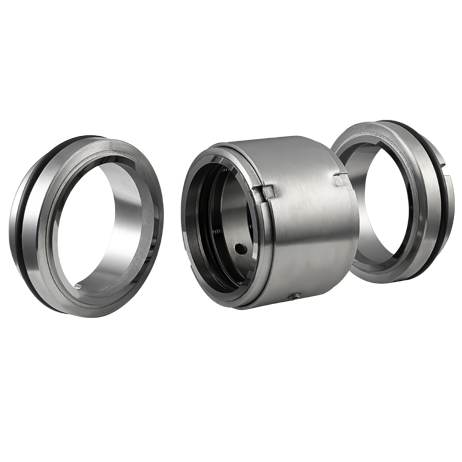

YMM74D Type

Available Range
Pressure:0~1.5MPa
Temperature:-20℃~180℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium
Water、Polluted water、Oil and Minor Corrosive Liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Availability:
Quantity:

YMM74D series is widely used, with strong interchangeability, non-tight sealing ring embedded, easy to replace. The push ring is stuck by the transmission partner to prevent the spring from falling off. Static ring can be limited, spring travel is limited, to avoid excessive wear of the spring.
