YMQC Type

Available Range
Pressure:0~2.5MPa
Temperature:-20℃~180℃
Speed:≤12m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium
Water、Polluted water、Oil and Minor Corrosive Liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Availability:
Quantity:
Inquire Add to Basket

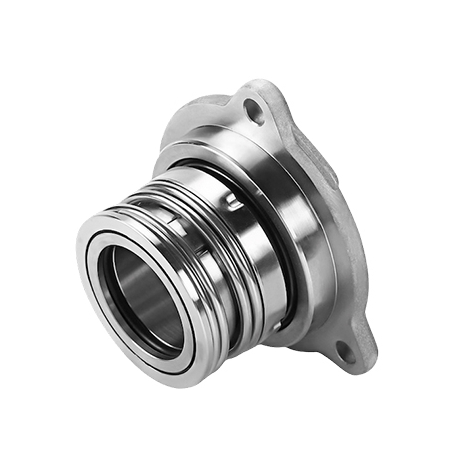

YMQC series are cartridge mechanical seals for TD pump. The common specifications are: 43/48/55mm.
