YMWZ Type

Available Range
Pressure:0~1.5MPa
Temperature:-20℃~180℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium
Water、Polluted water、Oil and Minor Corrosive Liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Availability:
Quantity:

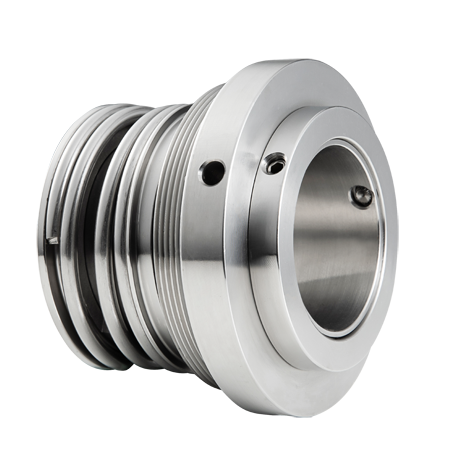

YMWZ series are cartridge mechanical seals. The common specifications are: 25/30/35/40/45/50/55/65mm. It is widely used with strong interchangeability and easy to install and replace。It can effectively solve the problem of pump body sealing and drying in limited time.
