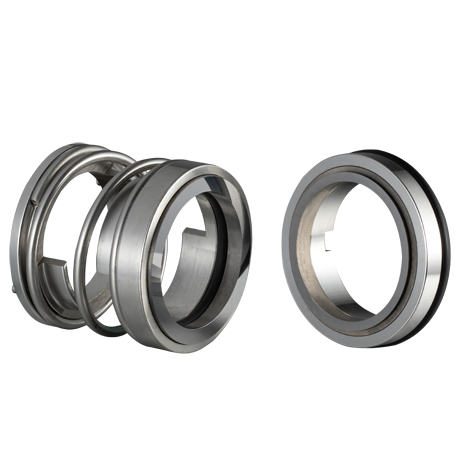

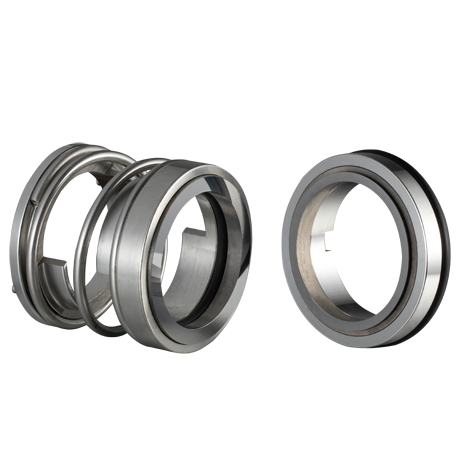

YM113 Type

Available Range
Pressure:0~1.5MPa
Temperature:-20℃~130℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium

Water、Polluted water、Oil and Minor Corrosive Liquid

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

YM113 series is suitable for corrosive chemical pump, sewage pump, industrial pump, etc. Driving ring adopts two forms of fork pin or set screw, reliable transmission, short axial size, easy to install, strong interchangeability, especially suitable for viscous medium.
