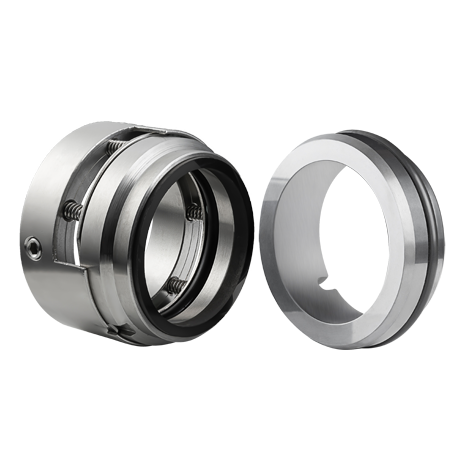

YMH7N Type

Available Range
Pressure:0~2.5MPa
Temperature:-20℃~200℃
Speed:≤15m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium
Water、Polluted water、Oil and Minor Corrosive Liquid
Customization
Changes of materials for getting other operating parameters are possible. Contact us with your requirements.
Availability:
Quantity:

YMH7N series seals are widely used with good interchangeability. Static ring adopts floating type, easy to install, push ring by the transmission partner stuck, to prevent spring falling out. Other special technical treatments include a stationary ring that can be limited and a ready-made spring travel to avoid excessive spring wear.
