YM132 Type

Available Range
Pressure:0~1.5MPa
Temperature:-20℃~130℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium

Water、Polluted water、Oil and Minor Corrosive Liquid

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

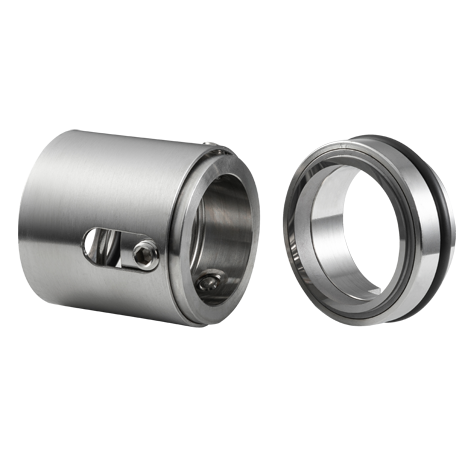

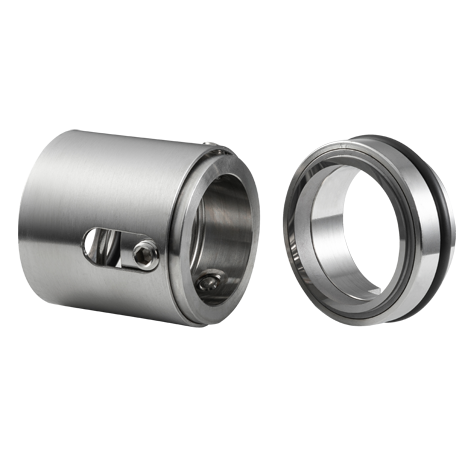

YM132 series is compact in structure, driven by pin and movable seat, easy to install, widely used in centrifugal pump, chemical pump and various weak corrosive conditions.
