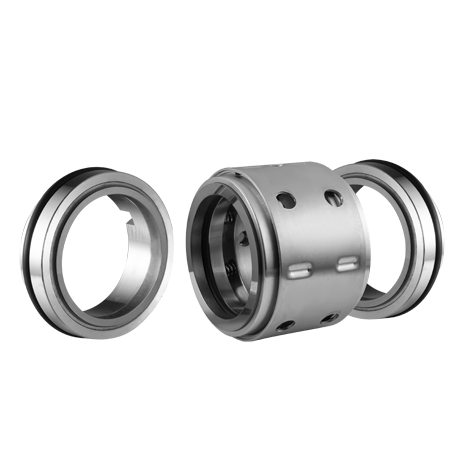

YM202 Type

Available Range
Pressure:0~1.0MPa
Temperature:-20℃~180℃
Speed:≤13m/sec
Materials
Rotary Ring Face: TC/SiC/Carbon/Al2O3
Stationary Ring Face: TC/SiC/Carbon/Al2O3
Elastomers: NBR/EPDM/Viton/AFLAS/PTFE/FFKM
Springs: SS304/SS316/2205/Ti
Metal Parts: SS304/SS316/2205/Ti
Medium

Water、Polluted water、Oil and Minor Corrosive Liquid

Customization

Changes of materials for getting other operating parameters are possible. Contact us with your requirements.

Availability:

Quantity:



Inquire Add to Basket

Product Description

YM202 series seal is a typical multi-spring non-equilibrium double-end mechanical seal for flow pump. It can be made of a variety of materials and end-face combinations to meet different requirements.
